Evolution of EHR Integration Standards and Protocols

In today’s healthcare landscape, the ability to smoothly exchange health data is not a luxury but a survival necessity. Healthcare standards and protocols are the backbone of this seamless data exchange, care coordination, clinical decision-making, and many such modern technologies. Without them, no matter how advanced your tech is, it will remain isolated, away from the other healthcare ecosystems.

As a healthcare provider, you know the form in which we see the data today was not like this from the beginning. First, all the patient data was stored on paper, limited to a single healthcare organization or individuals. This changed when computers came, and the data slowly began to go digital in 1972, but the actual change happened in the 1990s with the introduction of Electronic Health Records (EHRs).

However, even with the data going digital, one problem persisted: data silos or data isolation. Every healthcare organization has a different EHR, making it challenging to exchange patient data efficiently and smoothly. This locked information created inefficiencies and gaps in care delivery, disrupting the continuity of care and affecting patient care.

Along with the consequences on patient care, the data silos also impact the finances and clinical workflows of a healthcare practice. The unavailability of patient data causes redundancy in tests and clinical procedures, leading to unnecessary spending and increasing overall healthcare costs.

This is why the healthcare interoperability standards and protocols are at the forefront of making care delivery smoother and clinical workflows streamlined.

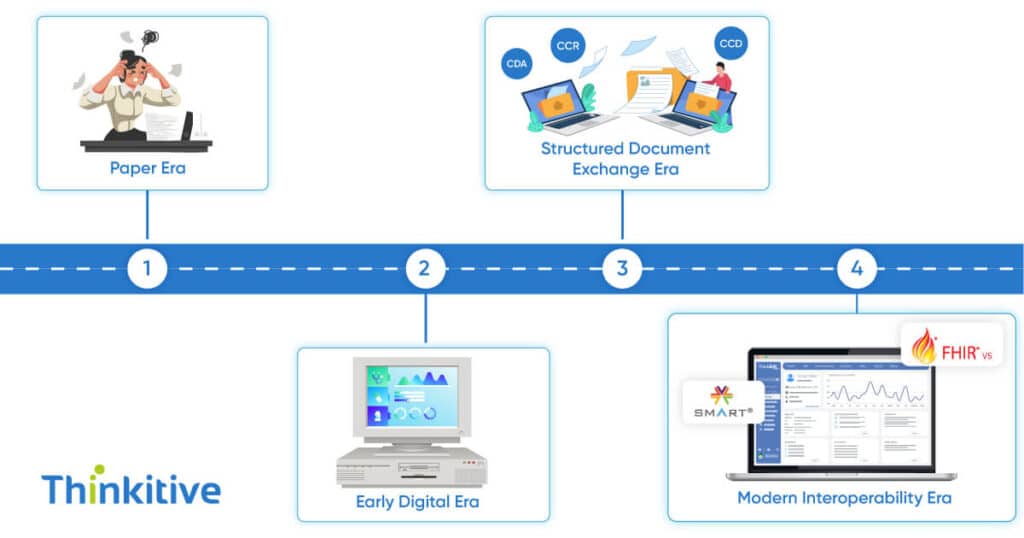

In this article, we will go through the complete evolution of the healthcare standards from the HL7 v2 to the current FHIR v5. Along with the current form, you will also know what the future of these standards is and how it will affect the healthcare industry and healthcare interoperability.

So, let’s dive in and explore the healthcare data standard evolution and take a peek into the EHR integration history!

The Early Days: HL7 v2 & the Foundation of Healthcare Integration

In the 1980s, healthcare faced a serious challenge as computers entered hospitals and other healthcare organizations. Every electronic health record spoke its own language, locking patient data in proprietary systems that couldn’t talk with each other, simply replacing paper silos with digital ones.

This is why many industry experts came together and founded Health Level Seven International (HL7) in 1987, named for the seventh layer of the ISO/OSI communications model. It had only one mission: to create a universal language for healthcare systems and make them seamlessly communicate with each other.

There were multiple factors that drove this standardization effort; the first one being the rapidly increasing healthcare costs, and the demand for information sharing. The second was the increasing medical errors from disconnected systems, highlighted by patient safety risks. Lastly, the organizations desperately needed systems that could talk to each other as manual processes became insufficient and inefficient with increasing healthcare complexity.

These efforts and needs brought the HLv2, which facilitated data exchange with the healthcare systems with the pipe-delimiting messaging format that still remains instantly recognizable. This simple yet powerful text-based format organizes the patient information into segments separated by carriage returns and pipe characters separating the individual data elements.

This healthcare integration standard supported critical workflows through message types like ADT (managing patient movement), ORM (handling clinical orders), and ORU (delivering test results). Although HL7 was flexible, this also created significant challenges; its wide adoption created variations complicating the healthcare landscape.

Despite being developed decades ago, HL7 v2 remains remarkably relevant, used by over 95% of US healthcare organizations and supported by a vast ecosystem of tools and professionals. Its human-readable format allows quick troubleshooting, efficiently handles high-volume transactions, and benefits from decades of real-world refinement.

While newer standards address HL7 v2’s limitations with semantic interoperability and complex data relationships, its pioneering approach established the first common language for digital health, transforming healthcare forever by enabling systems to communicate across organizational boundaries.

Document Exchange Standards: CDA, CCR, and CCD

As the healthcare landscape grew more complex in the early 2000s, message-based HL7 v2 standards proved insufficient for sharing clinical information. Because of this limitation, a shift towards structured clinical document exchange formats that are capable of containing complete patient stories occurred.

Let’s explore these data exchange standards briefly:

1. Clinical Document Architecture (CDA): This standard was introduced in 2000 by HL7. This format offered a flexible XML-based framework for data exchange. Its implementation came in three levels, from minimally structured Level 1 to highly coded Level 3. These levels decide how structured your patient data will be.

2. Continuity of Care Record (CCR): The American Society for Testing and Materials (ASTM) brought this standard in 2004 to bring interoperability across systems like EHRs, PHRs, and even mobile devices. It is a much lighter version of CDA, and much easier to implement as it only emphasizes the core clinical elements needed for patient care.

3. Continuity of Care Document (CCD): This standard was developed in 2007 by the combined effort of HL7 and ASTM to eliminate the competition and bring harmony in the healthcare data exchange. CCD combines the lightweight focus of the CCR and the technological robustness of CDA to share only the needed data elements during the patient handoff or transfer.

The healthcare organizations were rapidly adopting these standards in their systems and EHRs. However, it was further accelerated by the Meaningful Use program that required CCD/C-CDA implementation for certification. Moreover, the healthcare organizations quickly established data exchange capabilities with the Health Information Exchanges (HIEs), which made data sharing safer and smoother.

However, even after using all these standards, there were still semantic challenges, as different implementations understood clinical concepts inconsistently. This led to the creation of variations in the document organization and a struggle with terminology mapping. This is where the need for more granular and context-aware data exchange became apparent, leading to the development of API-based healthcare medical interoperability protocols.

The FHIR Revolution: API-Based Healthcare Integration

By the early 2010s, healthcare interoperability faced yet another challenge, HL7 v3, the next version of HL7 v2 and CDA standards, proved too complex for widespread integration and implementation. Additionally, the whole technological landscape has completely shifted towards web-based architecture and API-centric designs, creating a disconnect between healthcare standards and modern healthcare systems.

This is when the Fast Healthcare Interoperability Resources (FHIR) was introduced in 2014 as a way to overcome these challenges. It was also developed by HL7 and adopted the RESTful web principles along with JSOM/XML formats. It was designed with a resource-based approach that broke the healthcare data into modular, logical components like patient demographics and medications, allowing for targeted, granular data access.

FHIR’s flexible extension model allowed for standardized core resources while accommodating specialized needs. The standard’s maturity model provided clear implementation guidance, allowing organizations to adopt capabilities gradually.

This also became the reason for the major EHR vendors like Epic, Cerner, and Allscripts to implement FHIR APIs in their platforms. This rapid adoption was further boosted by government regulation such ass the 21st Century Cures Act as they manadated FHIR adoption for certifications.

FHIR brought the emergence of various open-source tools and developed ecosystems, such as testing frameworks. With this, it became a definitive standard for healthcare interoperability, finally bridging the gap between technology and the complex healthcare data needs.

Integration Framework and Profiles: IHE and SMART on FHIR

While the standards like HL7 v2 and FHIR established the foundation for healthcare interoperability, healthcare organizations soon realised that only the base standards were not sufficient. The flexibility of these standards created multiple variations, creating challenges and complicating interoperability.

So, to address this gap, the healthcare industry started developing a more constrained implementation and integration framework based on specific, real-world integration patterns. This was pioneered by Integrating the Healthcare Enterprise (IHE), which was founded in 1999. It developed a detailed technical framework for common healthcare workflows that helped take the first step towards interoperability.

IHE developed multiple profiles, but its most influential profiles include:

• Cross-Enterprise Document Sharing (XDS) for document exchange networks

• Patient Identifier Cross-Reference (PIX) for patient identity management

• Patient Demographics Query (PDQ) for collecting patient information

However, these programs only gained their credibility after going through rigorous Connectathon testing events, where the vendor showed the real-world interoperability. This led to regional and national adoption variations as different countries customized to fit their healthcare systems.

Furthermore, a new constrained implementation framework called SMART on FHIR emerged with FHIR for the modern app integration. It combined the FHIR’s data model with OAuth 2.0 security, and SMART allowed for the standardized healthcare app integration directly into the EHR workflows.

Also, its EHR launch context and app integration enabled apps to collect the patient context, user identity, and security permissions from the host system. This created different app galleries where providers can look for the certified and compatible apps for their health systems. SMART later expanded to include CDS hooks, enabling standardized clinical decision support integration at the point of care.

Semantic Standards: Medical Terminologies and Ontologies

Although the data exchange standards like HL7 v2 and FHIR establish a common data structure, they do not define what the data actually means. This gap created a more fundamental issue for organizations: ensuring that clinical concepts maintain the same meaning between systems.

This semantic gap created a situation where the shared complex patient information failed to be translated between different code systems, eventually leading to data distortion and misinterpretation. For instance, a lab result coded differently across systems might receive the wrong treatment or might be completely ignored by the decision support.

So, to change this situation, standardized clinical terminologies emerged as a structured semantic infrastructure. In this, the SNOMED CT provides a comprehensive clinical terminology with over 350,000 concepts covering findings, disorders, and procedures. As for the laboratory tests and clinical observations, there is LOINC, enabling more accurate comparison of results.

Moreover, there is also a norm naming system for the medications called RxNorm, while ICD-10/11 standardizes diagnosis coding for clinical and billing purposes. However, the implementation of these terminologies requires specialized infrastructure. It requires terminology servers to provide API access to code lookups and validations.

Mapping services are also essential to maintain equivalency between different code systems, while value management tools define context-specific subsets of codes for particular use cases. These semantic standards finally enable true interoperability, where not only data but also its meaning is transferred seamlessly.

The Future of Healthcare Integration: TEFCA, FHIR v5, and AI-Enhanced Exchange

Today, healthcare interoperability is advancing with the rapidly changing national frameworks and technological breakthroughs. The Trusted Exchange Framework and Common Agreement (TEFCA) creates a nationwide architecture for seamless data exchange across the networks. Moreover, the US Core Data for Interoperability (USCDI) standardizes the essential data elements for this data exchange.

While information blocking rules are allowing easier access to the health data for patients and other third-party apps. As for the standards, FHIR v5 is bringing more real-world capabilities like bulk data transfer and advanced genomics supporting precision medicine initiatives.

Along with this, the arrival of AI is automating mapping, enhancing data quality validation, and predictive analytics, saving time and significantly reducing errors. However, there are still many issues, like patient-generated data from wearables lacking standardization, creating variations.

Additionally, international data exchange demands harmonization between different national standards and regulatory frameworks. However, with the development of technology, healthcare is overcoming these challenges and moving towards creating an infrastructure that finally delivers a seamless information exchange.
